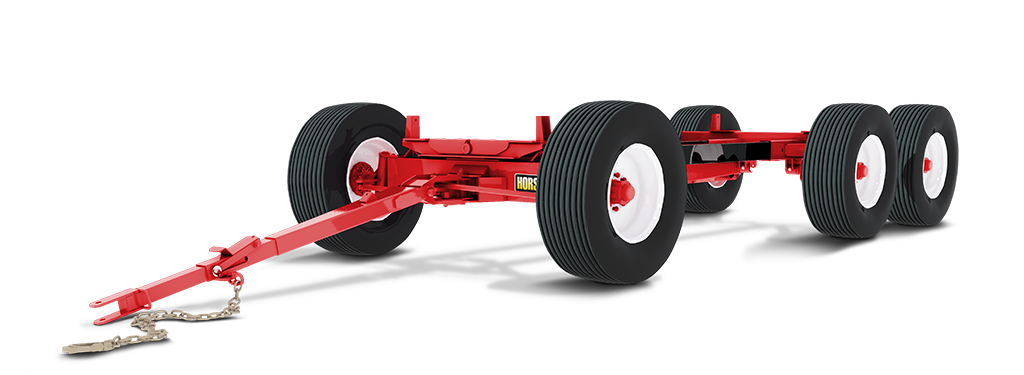

505 6 Wheel Running Gear Image

505 (22 Ton)

6 Wheel Model

Capacity 44,000 lbs.
Spindles 2-3/4" Dia C1045 Cold Rolled
Hubs 8 Stud 12,000 lbs.
Front Axle 10 x 4 x .250 Wall
Rear Axle 10 x 4 x .375 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Dia.
Bolster Flexible Front
Reach Tubes 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height from Ground to Top of Bunk 32" on 18 x 22.5 Tires
Approx. Weight 2,385 lbs. (less rims and tires)
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Narrow track (Custom Build) down to 60"
4 Wheel HD hydraulic disc brakes (remote) must use 22.5 rim**
2 Wheel HD hydraulic disc brakes (remote) must use 22.5 rim**
Electric brake actuator for hydraulic brakes
Safety chain (1/2" GR. 70)
Spring balancer for tongue consisting of spring adjustable bolt and two brackets
Double spring balancer
4" bolt on riser kit (other heights available)

**Hydraulic brake system also works on a brake pedal outlet kit.

Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 97" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 97" 7,850
425 x 22.5 Used Truck 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820
550 / 45 x 22.5 16 Ply 22.5 x 16 x 8 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
