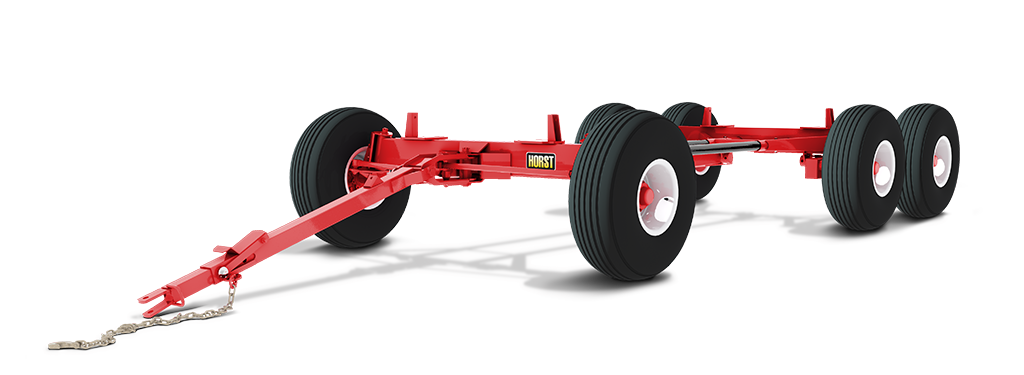

325 6 Wheel Running Gear Image

325 (18 Ton)

6 Wheel Model

Capacity 36,000 lbs.
Spindles 3" Diameter, C1045 Cold Rolled
Hubs 8 Stud 12,000 lbs.
Bearings - Bore Size (Inner/Outer) Taper Roller (2.165 / 1.625)
Front Axle 8 x 3.5 x .250 Wall
Rear Axle 8 x 4 x .250 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Diameter
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall - Round Tube
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height From Ground To Top of Bunk 30" (11 x 22.5 Tires)
Approx. Weight 1,475 lbs. (less rims and tires)
Optional Reach Lengths: 9', 11', 12', 14', 16', 18', 20', 22'
Narrow track (Custom Build) down to 60"
Wide Track (Custom Build) up to 90"
2 Wheel HD hydraulic disc brakes (remote) must use 22.5 rim**
4 Wheel HD hydraulic disc brakes (remote) must use 22.5 rim**
Disc brake flanges for future add on (per axle)
Electric brake actuator for hydraulic brakes
Safety chain (1/2" GR. 70)
Spring balancer for tongue consisting of spring adjustable bolt and two brackets
Double spring balancer
Rocking bolster
4" bolt on riser kit (other heights available)

**Hydraulic brake system also works on a brake pedal outlet kit.

Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
11 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck 22.5 x 11.75 x 8 87" 10,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 10,000
425 x 22.5 Used Truck 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 Used Truck 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400/55 22.5 16 Ply 22.5 x 13 x 8 86" 7,820

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
