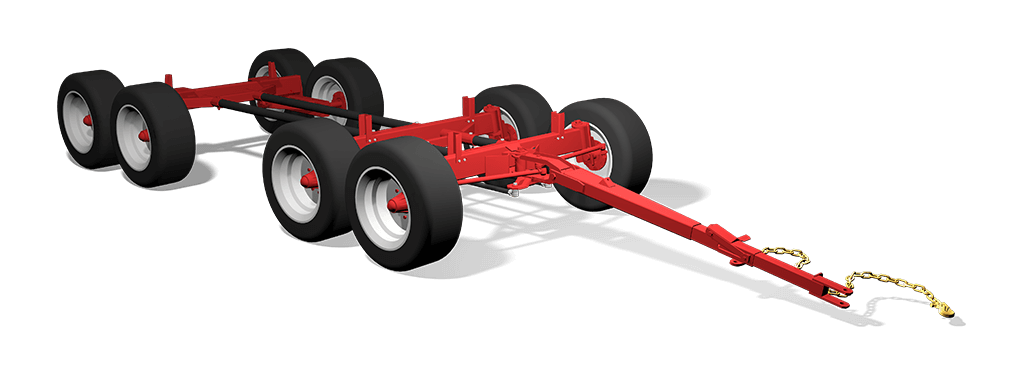

208 8 Wheel Quadsteer Running Gear Image

208 (16 Ton)

8 Wheel Quadsteer Model

Capacity 32,000 lbs.
Spindle 2-1/4" Dia. C1045 Cold Rolled
Hubs 8 Bolt 6,500 lbs.
Bearings Taper Roller 1.80/1.38 (Bore Siz Inner/Outer)
Front Axle 7 x 3 x .250 Wall
Rear Axle 7 x 3 x .313 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearings
Tongue Bolt 1-1/8" dia.
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall Round Tube
Bolster Stakes 42.5" Fixed
Steering Automative Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height 26" on 12.5 x 16 Tires; 30" on 11 x 22.5 Tires (From Ground to Top of Bunk)
Approx. Weight 1,655 lbs. (less rims and tires)
Optional Reach Lengths: 9', 11', 12', 14', 16', 18', 20', 22'
2 wheel free backing surge brakes
4 wheel surge brakes
Safety chain (1/2" GR. 70)
Spring balancer for tongue consisting of spring adjustable bolt and two brackets
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
12.5L x 16 14 Ply 16 x 10 x 8 82" 4,180
12.5L x 15 F Range / Hwy Ser. 15 x 10 x 8 HD 82" 4,680
14L x 16.1 8 Ply 16.1 x W11C x 8 82" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 82" 4,680

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
