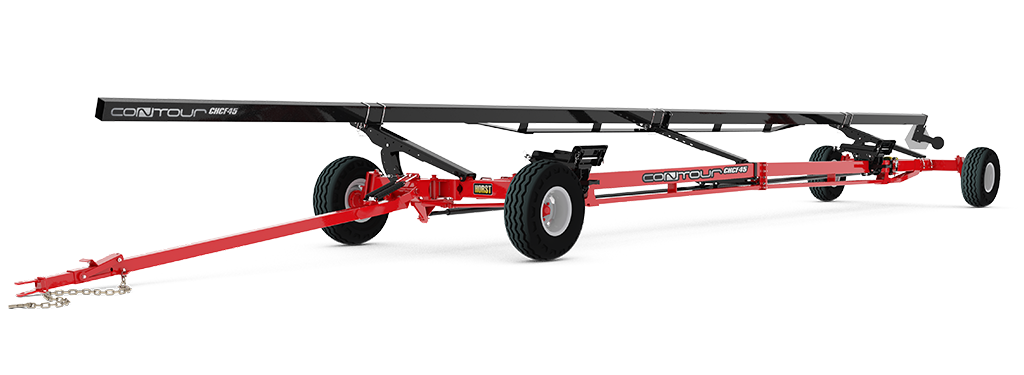

CHCF45

Contour 4 Wheel Steer

Tapered roller bearings on king pins for absolute no sway trailing
Includes 2 tool free configurable universal pads
2 Ratchet straps to secure load
4 Wheel steering
30 ft. wheelbase has reinforced bottom rail
Safety Chain
Double Spring Tongue Balancer
Length adjustable hitch with auto lock for simple hook up

Maximum Rated Gross Capacity	15,500 lb.
Wheelbase	30'
Tongue Length (Adjustable)	11' to 14'
Top Rail Length	48'
Bridged Top and Bottom Rail	Standard
Maximum Head Size	45'
Safety Chain	Standard
Approx. Weight	3,495 lb. (less rims and tires)

Maximum Rated Gross Capacity changes depending on tire option

LK30	Road Signal Light Kit (30' wheelbase)
CHCFK	Fender kit - keep your header protected from road debris
CHCRB30HD	Heavy Duty Bottom Rail Option - is designed for headers that require extra support along the mid section. (in lieu of standard rail at time of manufacture) 30' wheelbase
HBAFK	Honey Bee AirFLEX^® Pad Adapter Kit

Tire Size	Description	Capacity (LBS/Tire)	Rim Size
26 x 12	12 ply	2,750	12 x 10.5 x 6
235/85 R16	F Range highway trailer tire	3,960	16 x 8 x 6
11L x 15	F Range highway service tire	3,960	15 x 8 x 6 HD

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
