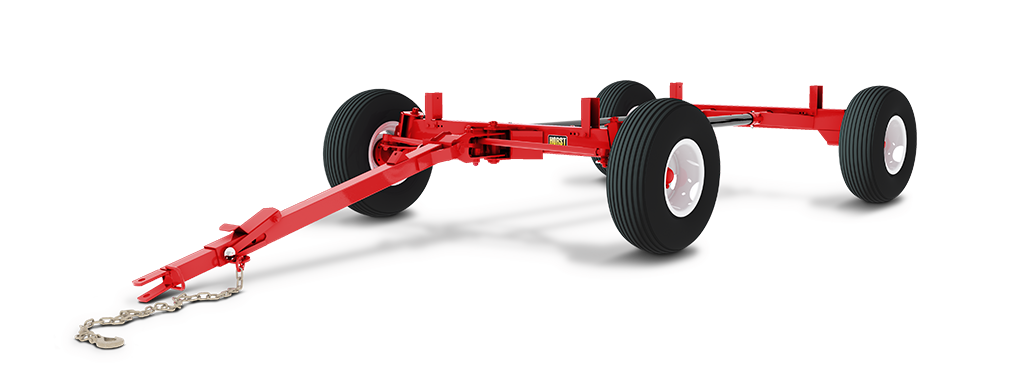

185 (10 Ton)

4 Wheel Model

Capacity 20,000 lbs.
Spindles 2" Diameter, C1045 Hot Rolled
Hubs 6 Bolt 6,000 lb
Bearings - Bore Size (Inner/Outer) Taper Roller (1.80 / 1.38)
Front Axle 6 x 3 x .250 Wall
Rear Axle 6 x 3 x .250 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Diameter
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall - Round Tube
Bolster Stakes Adjustable 38.5" - 40.5" - 42.5"
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height From Ground To Top of Bunk 24" (on 11L x 15 Tires)
Approx. Weight 725 lbs. (less rims and tires)
Optional Reach Lengths 9', 11', 12', 14', 16', 18', 20', 22'
High Clearance Option 6" increase (see specs)
Narrow track Custom build
Wide Track Custom build
Safety Chain 3/8" GR. 70
Spring Balancer for Tongue Spring adjustable bolt and two brackets
Double Spring Balancer
Rocking bolster
Rocking bolster for ammonia tank
4" Bolt On Riser Kit Other Heights Available
Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
11L x 15 8 Ply 15 x 8 x 6 76" 2,540
225/75 R15 D Range 15 x 6 x 6 76" 2,540
12.5L x 15 12 Ply 15 x 10 x 6 77" 3,640
245 R16 Used Truck / New Tubes* 16 x 8 x 6 76" 3,500
11L x 15 D Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,120
11L x 15 F Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,690

* Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
