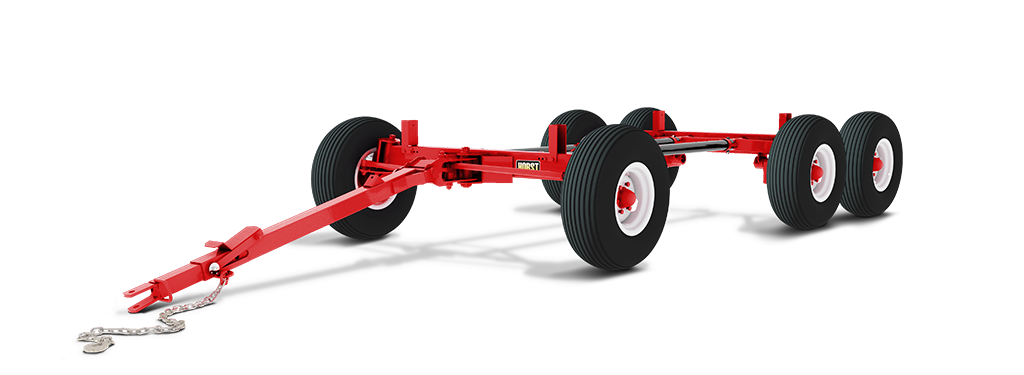

245 6 Wheel Running Gear Image

245 (12 Ton)

6 Wheel Model

Capacity 24,000 lbs.
Spindles Front: 2-3/4" Dia. C1045 Cold Rolled; Rear: 2-1/4" Dia. C1045 Cold Rolled
Hubs 6 Bolt 6,000 lbs.
Bearings - Bore Size (Inner/Outer) Taper Roller 1.80/1.38
Front Axle 6 x 3 x .250 Wall
Rear Axle 6 x 3 x .250 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Dia.
Tongue Latch Retractable Automatic Relock - Standard on all Models
Reach Poles 3" O.D. x .188 Wall - Round Tube
Bolster Stakes Adjustable 38.5" - 40.5" - 42.5"
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height from Ground to Top of Bunk 23" on 11L x 15 Tires
Approx. Weight 970 lbs. (less rims and tires)
Optional Reach Lengths: 9', 11', 12', 14', 16', 18', 20', 22'
Narrow track (Custom Build) down to 60"
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
Safety chain (3/8" GR. 70)
Spring balancer for tongue consisting of spring adjustable bolt and two brackets
Double spring balancer
Rocking bolster
Rocking bolster for ammonia tank
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
11L x 15 8 Ply 15 x 8 x 6 76" 2,540
225/75 R15 D Range 15 x 6 x 6 76" 2,540
12.5L x 15 12 Ply 15 x 10 x 6 77" 3,640
12.5L x 16 14 Ply 16 x 10 x 6 75" 4,180
245 R16 Used Truck / New Tubes 16 x 8 x 6 76" 3,500
11L x 15 D Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,120
11L x 15 F Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,960

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
