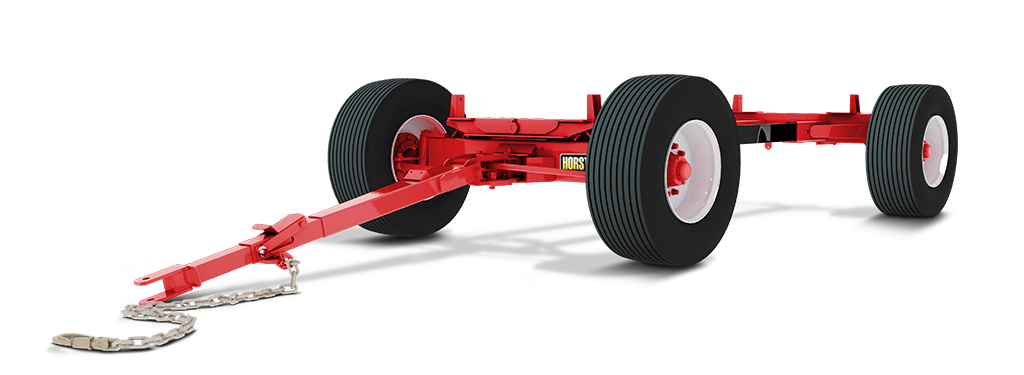

485 (24 Ton)

4 Wheel Model

Capacity (30 kph / 20 mph) 48,000 lb
Capacity (50 kph / 30 mph) 48,000 lb
Spindles 4" Diameter, C1045 Cold Rolled
Hubs 10 Stud
Front Axle 10 x 4 x .500 Wall
Rear Axle 10 x 4 x .375 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/2" Diameter
Bolster Rocking Bolster
Reach Tubes 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheelbase Adjustable
Height From Ground To Top of Bunk 34" on 18 x 22.5 Tires
Approx. Weight 2,210 lbs. (less rims and tires)
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Narrow track (Custom Build) down to 60" (stake posts may ship loose)
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
2 Wheel HD hydraulic disc brakes c/w flat face brake line coupler
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
425 x 22.5 Used Truck ** 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 Used Truck ** 22.5 x 13 x 10 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.


** Used tires may not meet local regulations, check with your local authority before purchasing.
