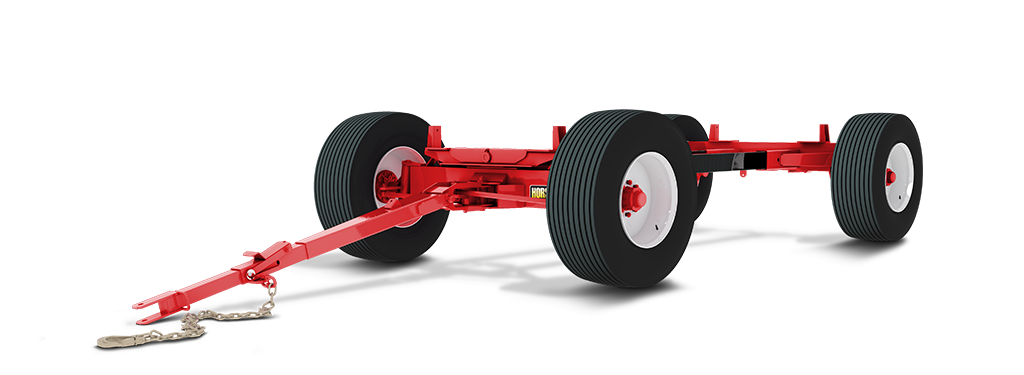

365 4 Wheel Running Gear
Print Safe Page

Print

365 (20 Ton)

4 Wheel Model

Capacity (30 kph / 20 mph) 40,000 lb
Capacity (50 kph / 30 mph) 36,000 lb
Spindles 3" Diameter, 1144 Stress Proof
Hubs 8 Stud
Front Axle 10 x 4 x .250 Wall
Rear Axle 10 x 4 x .188 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Diameter
Bolster Rocking Bolster
Reach Tubes 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheelbase Adjustable
Height From Ground To Top of Bunk 34" on 18 x 22.5 Tires
Approx. Weight 1,595 lbs. (less rims and tires)
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Narrow track (Custom Build) down to 60" (stake posts may ship loose)
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
2 Wheel HD hydraulic disc brakes c/w flat face brake line coupler, must use 22.5 rim
Single spring balancer
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 89" 5,200
19L x 16.1 12 Ply 16.1 x W16C x 8 91" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 91" 7,850
425 x 22.5 Used Truck ** 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 8 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.


** Used tires may not meet local regulations, check with your local authority before purchasing.
