Horst Wagons

CHCFE36

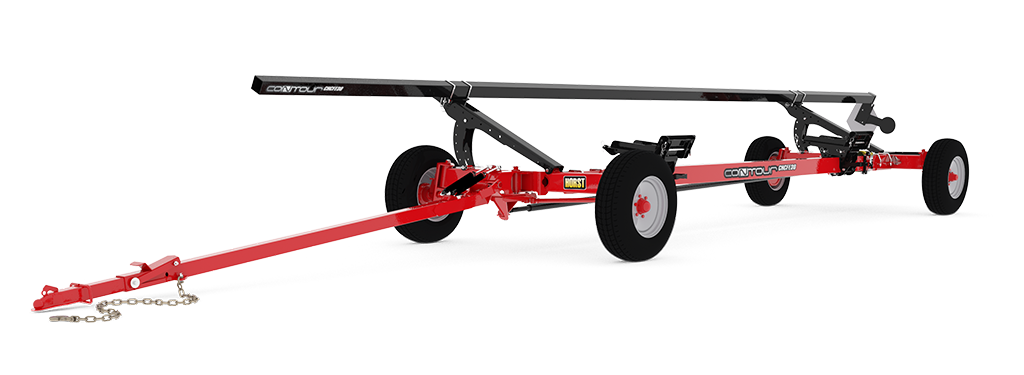

C H C F E 36 Contour Header Wagon
Print Safe Page

Print

CHCFE36

Contour 4 Wheel Steering Rear Electric Brakes

Maximum Rated Gross Capacity 10,400 lbs.
Wheelbase 30'
Tongue Length (Adjustable) 11' 9" to 14' 9"
Top Rail Length 36'
Bridged Top & Bottom Rail Standard
Maximum Head Size 35'
Safety Chain Standard
Approx. Weight 3,480 lbs. (less rims and tires)

Maximum Rated Gross Capacity changes depending on tire option

CHCFK Fender kit - keep your header protected from road debris
CHCRB30HD Heavy duty bottom rail option - is designed for headers that require extra support along the mid section (in lieu of standard rail at time of manufacture) 30' wheelbase.
HBAFK Honey Bee AirFLEX® Pad Adapter Kit
CHCTRMX3 Extends top rail horizontal adjustment up to 10" (incl. 3 extensions and 6 pins)
Tire Size Description GVWR Rim Size
235/85 R16 F Range highway trailer tire 10,400 lbs. 16 x 8 x 6

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
