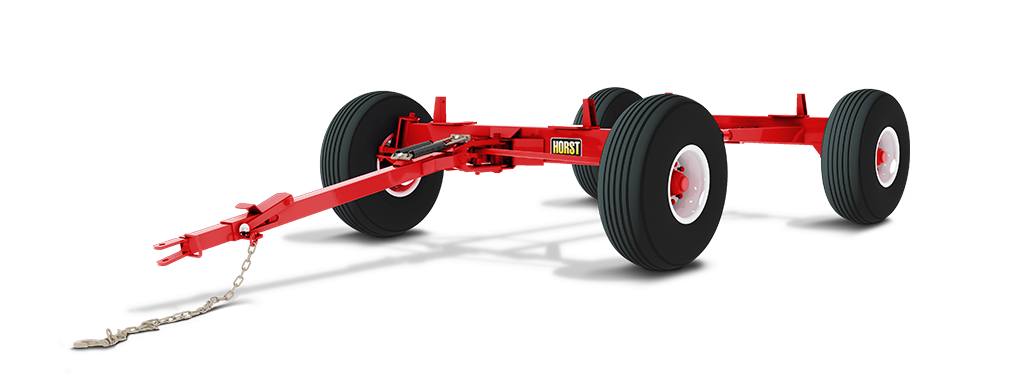

275 (14 Ton)

4 Wheel Model

Capacity (30 kph / 20 mph) 28,000 lb
Capacity (50 kph / 30 mph) 24,000 lb
Spindles 2-3/4" Diameter, C1045 Cold Rolled
Hubs 8 Stud
Bearings - Bore Size (Inner/Outer) Taper Roller (2.165 / 1.625)
Front Axle 8 x 3.5 x .250 Wall
Rear Axle 8 x 3.5 x .250 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Diameter
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall - Round Tube
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheelbase Adjustable
Height From Ground To Top of Bunk 30" (11 x 22.5 Tires)
Approx. Weight 1,015 lbs. (less rims and tires)
Optional Reach Lengths: 9', 11', 12', 14', 16', 18', 20', 22'
Narrow track (Custom Build) down to 60" (stake posts may ship loose)
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
2 wheel free backing surge brakes c/w double spring balancer (includes brake tongue)
2 Wheel HD hydraulic disc brakes c/w flat face brake line coupler, must use 22.5 rim
Disc brake flanges (for future brake add on)
Single spring balancer
Double spring balancer
Rocking bolster
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
14L x 16.1 8 Ply 16.1 x W11C x 8 89" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 89" 5,200
11 x 22.5 Used Truck ** 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck ** 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck ** 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck ** 22.5 x 11.75 x 8 89" 10,000
425 x 22.5 Used Truck ** 22.5 x 11.75 x 8 89" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 89" 12,000
425 x 22.5 Used Truck ** 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.


** Used tires may not meet local regulations, check with your local authority before purchasing.
